Overview

HYBRID VERTICAL TILLAGE

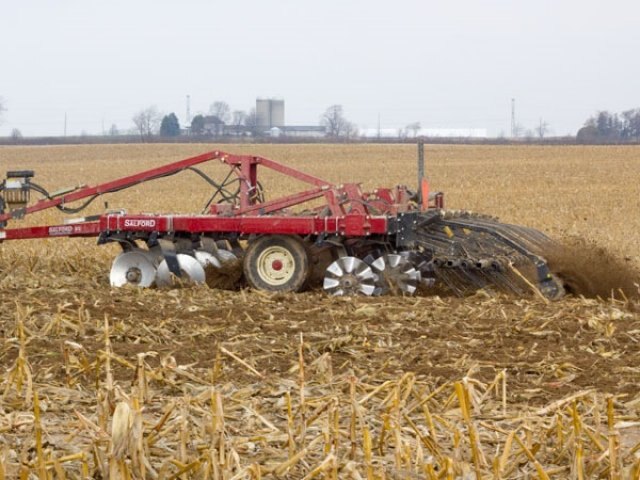

The I-4100 is the most aggressive machine in the Salford Independent Series. This machine combines two rows of shallow concave disc blades followed by two rows of coulters on the same frame. Blades are spaced seven-and-a-half inches apart. The front two rows of concave blades are spaced 15 inches apart, and the coulters split that spacing to reduce density between the disc blades. The I-4100 performs best as a fall residue management machine and for incorporating heavy product. The additional tillage action of the disc blades mixes more soil with residue to further accelerate decomposition. For seedbed preparation, the I-4100 does its best work with two passes at slightly opposite angles to ensure the surface is fully prepared. The Independent Series tools comfortably apply ammonia at eight miles per hour, often with the anhydrous meter being the limiting factor.



Specifications
Model
Independent 4100 (HD EXTREME)
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Salford
features

Coulters and Mounts

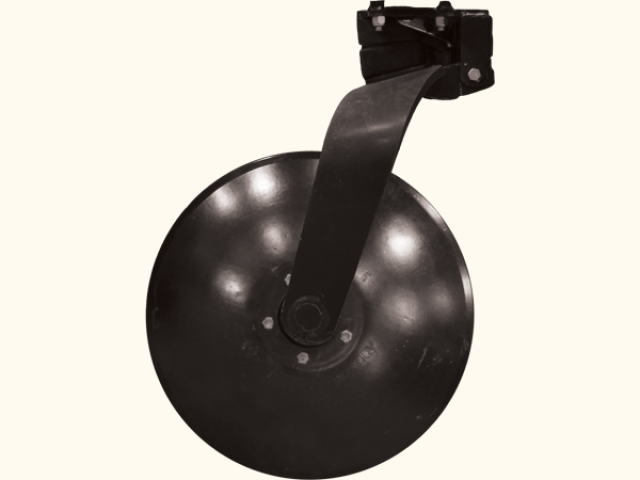

  • Front: 22” dia a 5 mm shallow concave discs (rubber mount)

  • Rear: 22” dia x 5mm 8 wave coulter (coil mount)

  • Boron steel blades

  • 5” of vertical travel

Frame

  • Heavy Duty 4”x 6” tubing

  • Hydraulic level lift

  • Hydraulic single-point depth control

  • Heat treated cast clevis hitch

  • Operator convenience center

  • Welded main frame with capped tube ends

Tires—Mainframe

  • 20’ - 24’ 8 bolt 12.5L x 15 “F”

  • 28’ - 36’ 8 bolt 305/70 x R22.5

  • 41’ (3 Section) 8 bolt 305/70 x R22.5 Recapped Truck Tire

  • 41’ (5 Section) 8 bolt 425/65R x 22.5 Recapped Truck Tire

  • 50’ (5 Section) 10 bolt 425-65R x 22.5 Recapped Truck Tire

  • 60’ (5 Section) 10 bolt 445-65R x 22.5 Recapped Truck Tire·

Tires—Wings

  • 20’ – 41’ All Wings

  • 11L x 15 6 bolt load range “D"

  • 50’, 60’ – All Wings

  • 8 bolt 12.5L x 15 “F”
harrows

Finishing Package

  • FlexFinish Hydraulically Adjustable Tines and Rolling Baskets (28' and up only)

  • Manually Adjustable HD Tines and Rolling Baskets

Finishing Package Consist of:

Heavy Duty 3 bar 1/2” tines

  • 1/2” dia. tine, strength for exceptional leveling

  • 3 ranks with 20” clearance

  • No tool pitch adjustment

Heavy Duty 14” Rolling Harrow

  • Adjustable down pressure

  • Triple seal 1.5” bearing resists rock damage, even at high speed

  • Flex Finish Hydraulically Adjustable Rolling Harrow (Optional 28' and up only)
optional equipment

  • 100-lb. weight kits

  • Adjustable tow hitch (one-man connection)

  • Hydraulic lines and quick coupler to tow hitch

  • Roller dirt shield



specifications
I-4100 Specs
Operating Depth Range 0" - 5" (0 m - .13 m)
Blade Mount Leaf spring & rubber suspension
Blade Type 22" (.56 m) x 5mm
First two rows: Shallow Concave
Last two rows: Coulter
- 8 wave (2 1/2"(.06 m) deep wave) or
- 13 wave (1 3/4" (.04 m) deep wave)
Blade Spacing 7.5" (.19 m)
Vertical Travel 5" (.13 m)
Swivel No
Hub 5 bolt



I-4100 Independent Series
Size Frame Sections # of Concave/
Coulter		 Transport Height Transport Width Approx. weight
with harrows		 H.P. Required*
12' (3.66 m) 1 9/10 No wings 13'3" (4.04 m) 8,100 lbs
(3.67 t)		 140-160
16' (4.88 m) 3 Flat-Fold 11/14 10' (3.05 m) 10' (3.05 m) 12,200 lbs
(5.53 t)		 180-210
20' (6.10 m) 3 15/18 11'2" (3.40 m) 13'10" (4.22 m) 14,700 lbs
(6.67 t)		 220-260
24' (7.32 m) 3 17/20 12'8" (3.86 m) 13'10" (4.22 m) 16,300 lbs
(7.39 t)		 270-320
28' (8.53 m) 3 21/24 13' (3.96 m) 15'8" (4.78 m) 19,900 lbs
(9.03 t)		 310-370
31' (9.45 m) 3 23/26 14'6" (4.42 m) 15'8" (4.78 m) 20,800 lbs
(9.44 t)		 350-410
36' (10.97 m) 3 27/30 14'2" (4.32 m) 21' (6.40 m) 24,900 lbs
(11.30 t)		 400-470
41'(12.50 m) 3 31/34 16'6" (5.03 m) 21' (6.40 m) 27,100 lbs
(12.29 t)		 460-540
41' (12.50 m) 5 Bi-fold 31/34 13'6" (4.12 m) 18'9" (5.72 m) 32,300 lbs
(14.65 t)		 460-540
50' (15.24 m) 5 Bi-fold 39/40 14'3" (4.34 m) 19' (5.79 m) 37,800 lbs
(17.15 t)		 500+
60' (18.29 m) 5 Bi-fold 47/50 15'8" (4.78 m) 21'10" (6.66 m) 44,600 lbs
(20.23 t)		 500+
*Horsepower requirements vary by speed and operating depth.



Operating Guide
Operation Crop Type Depth
Seed bed preparation* All crops 2" - 3" (.05 m - .08 m)
*For seedbed preparation with the I-4100, run two passes at slightly opposite angles. The machine should be tipped 1" to 1.5" (.03 m -.04 m) to the near so that the coulters penetrate deeper than the concave blades. Not recommended for seedbed preparation in heavy clay soils.
Fall residue management All Crops 3" (.08m) or deeper
(coulter hubs must stay clear of field surface)
