Overview

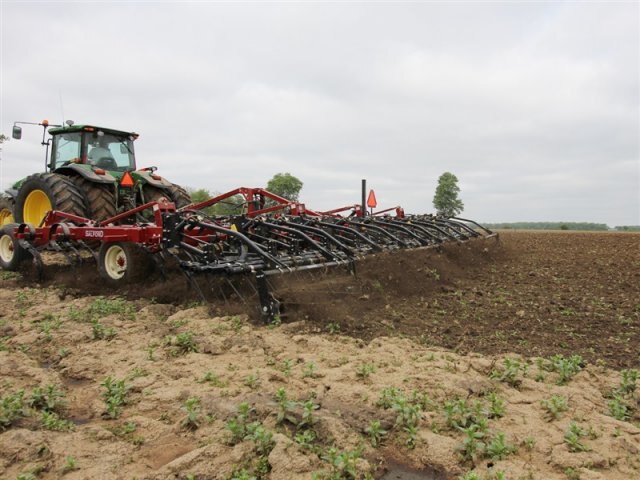

550 S-Tine, two-piece S-tine, and C-shank Cultivators

Strength, durability, and performance are standard features on Salford field cultivators. Hydraulic self-leveling frames and fine-adjust single-point depth control are also standard features. Capped, all-tubular steel frames add to the strength of the machine, and 4" x 6" main beams and 2.5" x 2.5" tine bars stand up to the toughest operating conditions. Fewer hinge points greatly reduce wear on Salford cultivators, lowering maintenance costs over the life of these durable machines.

The stiffer tine increases the stir and vibration of Salford S-tine equipment for improved leveling and commodity incorporation.
Specifications
Model
550 S-Tine, two-piece S-tine, and C-shank Cultivators
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Salford
features

Standard Features:

  • Tandem wheels on main frame and wings

  • Adjustable tip pressure to 270 lbs on C-shank models

  • 110 lbs - 200 lbs operating pressure (S-Tine tip pressure varies during operation as the tine vibrates in the soil)

  • Manual adjustable gauge wheels on primary wing only

  • Category 3 hitch with bolt in adapter or Category 4 hitch

  • Hydraulic self-leveling frame

  • Single point hydraulic depth control

  • Safety chain, SMV sign, safety lights

Options:

  • “Land-hugger” floating frame with manual adjust caster wheels (available on 40’ models only)

  • Adjustable tow hitch (one-man hook-up)

  • Hydraulic lines and quick coupler to tow hitch
specifications

Salford 550 S Tine, two piece S tine, and C shank Cultivators

550 Field Cultivators
Working Width
6-Bar S-Tine & 2 Piece S-Tine models

4.5" Tine spacing with Long Life Cast Point
C-Shank Models

7" Shank spacing with 7" sweeps


No. of Tines

No. of Shanks

Horse Power Required per foot of machine
28' (8.53 m)
76
49
140 - 170
30' (9.14 m)
80
51
150 - 180
32' (9.75 m)
86
55
160 - 200
40' (12.19 m) **
108
69
200 - 240
**Bi-fold Frame, See Dealer or Call Salford for Transport Specs and Weights



Operation and Application S-Tine C-Shank
Operating Depth 1.5" - 4" (0.04 - 0.10 m) 2" - 6" (0.05 - 0.15 m)
Operating Speed 5.5 - 9 mph (8.85 - 14.48 kph) 4.5 - 7 mph (7.24 - 11.27 kph)
% of Residue Bured in one pass 20 - 30 40 - 50
Seed Bed Preparation Excellent Excellent
Primary Tillage Poor Average
Field Leveling Excellent Excellent
Weed Control Excellent Excellent
Incorporation of Chemical/Fertilizer Excellent Excellent
Residue Management Average Good
Surface Compaction Removal Excellent Excellent
Deep Compaction Removal (12"+) N/A N/A
Land Reclamation Poor Average
